Scripting

Everything the generator plans is available to your own scripts, so you can build gameplay on top of a generated city instead of just walking through it.

Accessing the generator

Get the generator from the Voxel Play world once it exists:

var gen = env.world.GetGenerator<CombatZoneGenerator>();

Regenerating

Rebuild the world with a new seed at runtime:

gen.Regenerate(newSeed);   // reloads the world with the new layout

Knowing when the plan is ready

CurrentPlan is built lazily as the world starts generating, so read it from a Voxel Play lifecycle event, not in Start. OnWorldLoaded fires once the chunks around the player are in, and again after every Regenerate, so one subscription covers reloads:

void OnEnable()  { VoxelPlayEnvironment.instance.OnWorldLoaded += PlaceGameplay; }
void OnDisable() { VoxelPlayEnvironment.instance.OnWorldLoaded -= PlaceGameplay; }

void PlaceGameplay() {
    var env = VoxelPlayEnvironment.instance;
    var gen = env.world.GetGenerator<CombatZoneGenerator>();
    WorldPlan plan = gen != null ? gen.CurrentPlan : null;
    if (plan == null) return;   // no Combat Zone generator in this world
    // ... place spawns, loot and objectives from plan ...
}

Reading the plan

After the world is generated, gen.CurrentPlan exposes the full WorldPlan as data you can query to place spawns, cover, patrols, objectives or loot:

Fast lookups are provided as helpers:

plan.IsStreet(x, z);     // is this world column a street?
plan.IsBuilding(x, z);   // is it inside a building footprint?
plan.InInterior(x, z);   // is it inside the perimeter wall?

From plan cells to world positions

The plan works in voxel columns (x, z). To place a GameObject, ask Voxel Play for the ground height at that column and spawn there (one voxel is one world unit by default):

var env = VoxelPlayEnvironment.instance;
foreach (var b in plan.buildings) {
    if (b.collapsed) continue;
    Vector2 c = b.footprint.center;              // building centre, in voxel columns
    float y = env.GetTerrainHeight(c.x, c.y);    // world ground height at that column
    Instantiate(enemyPrefab, new Vector3(c.x, y, c.y), Quaternion.identity);
}

Combine this with plan.IsStreet(x, z) and plan.InInterior(x, z) to filter candidates: patrols along streets, defenders inside the wall, loot in intact footprints. Filter plan.props by tag (such as "checkpoint", "crane", "well", "stall") and read building.archetype (such as "house", "residential", "mosque") to target specific structures.

Querying the City Connector

The CityConnectorGenerator holds the layout of the whole world: where every district landed and where the highways run. Reach it from the World Definition's detail generator list and query it instead of guessing coordinates.

CityConnectorGenerator connector = null;foreach (VoxelPlayDetailGenerator g in VoxelPlayEnvironment.instance.world.detailGenerators) {    if (g is CityConnectorGenerator c && c.enabled) { connector = c; break; }}

Starting the player at a city

In a multi-district world the City Connector decides where the cities go while the world is being generated, so a spawn position saved in the scene points at open desert as soon as the layout seed or the district count changes. The spawn is therefore asked for, not stored.

Drop the CombatZoneSpawn component on any object in the scene. It finds the environment, the player and the City Connector on its own, asks the Connector for a city approach and moves the player there facing the gate. This is what the multi-district demo scene uses.

Once it has run, SpawnPosition holds where the player was put and Spawned is true.

To place something of your own, ask the Connector directly:

// A point on the slip road outside a city, and the gate to faceif (connector.TryGetCityApproach(out Vector3 stand, out Vector3 lookAt)) {    transform.position = stand;    transform.rotation = Quaternion.LookRotation(lookAt - stand);}

The point returned sits a little under halfway along the first slip road, so the wall is behind you and the gate fills the view. If no district got a slip road it falls back to the ring road around the first one. The call plans the layout if it has not been planned yet, so it works in the Editor as well as in play mode.

Custom inventory UI

The demo ships a custom HUD, CombatZoneUI, that replaces Voxel Play's default inventory grid with a Minecraft-style bottom hotbar plus a paged inventory. It is a worked example of overriding the Voxel Play UI that you can copy for your own game.

How it works

• CombatZoneUI subclasses VoxelPlayUIDefault and overrides InitUI, ToggleInventoryVisibility, ToggleInitializationPanel, LateUpdateImpl and IsInventoryVisible. It builds the hotbar row at runtime by reusing the base UI's item button template, so icons, counts and the selected-slot highlight match the rest of Voxel Play.

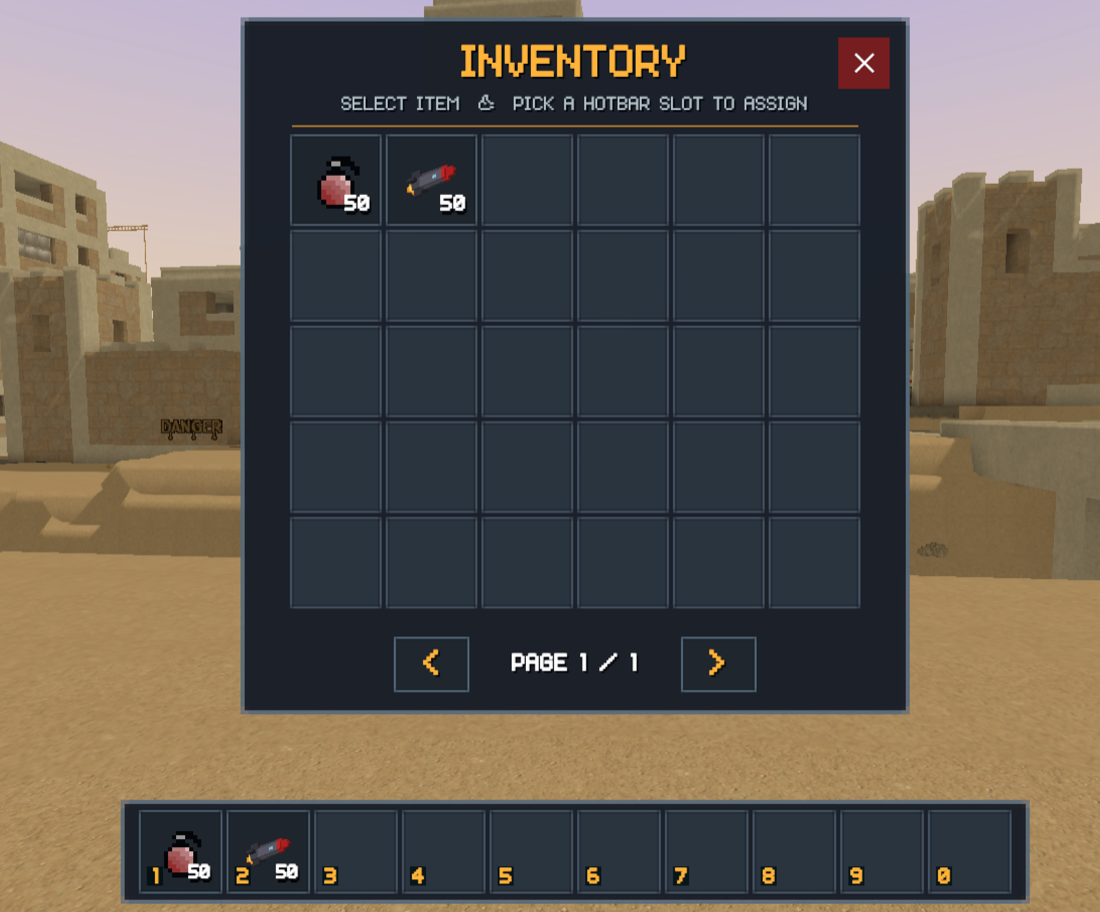

• Number keys 1–0 select a hotbar slot; Tab opens a paged grid on top of the hotbar. To assign a weapon to a slot, click the hotbar slot to arm it (it prompts assign item to slot N), then click an inventory item to place it there. Clicking an item without arming a slot simply selects it.
• The loading screen is a separate prefab (Combat Zone Loading Screen) assigned to the environment's Loading Screen > Prefab slot; it implements Voxel Play 4's IVoxelPlayLoadingScreen interface and is driven by the real initialization progress. CombatZoneUI's ToggleInitializationPanel override only reveals the hotbar once that screen is dismissed.

Resources and setup

• Assets/VoxelCombatZone/Demos/UI/CombatZoneUI.cs — the UI script. It has no assembly definition so it compiles into Assembly-CSharp; this is required to override the Voxel Play UI.
• Assets/VoxelCombatZone/Demos/UI/Combat Zone UI Canvas.prefab — a copy of the Voxel Play UI canvas with its root script swapped to CombatZoneUI. The demo scene points the Voxel Play environment's UI Canvas Prefab field at this prefab.
• Inspector knobs tune the layout: hotbar slot count, slot size, spacing, bottom margin and slot numbers, plus the paged grid's columns and rows.
