Terrain Generators

Each World must have a Terrain Generator attached to the terrain generator field:

The terrain generator component is responsible for providing basic data about any world position like ground altitude, moisture and biome type.

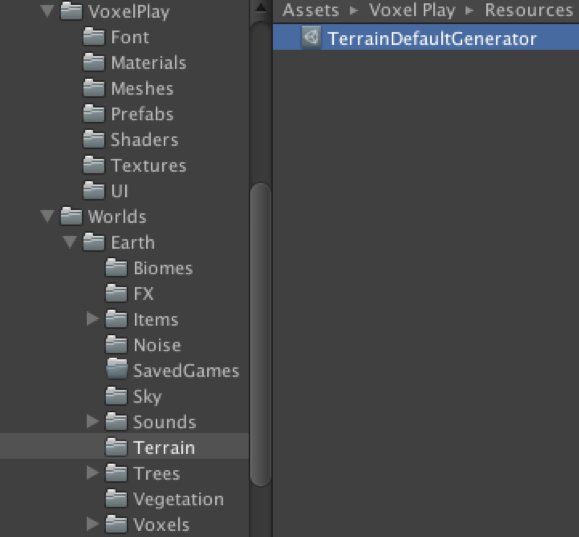

The demo Earth world provided with Voxel Play contains a terrain generator that you can modify, duplicate or reuse:

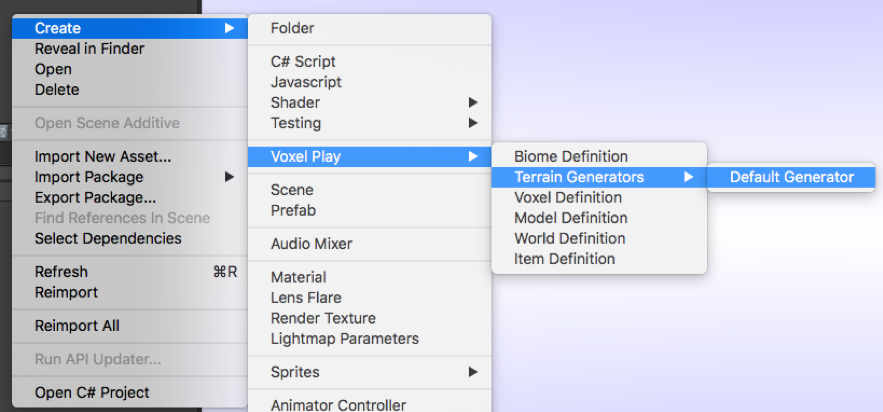

You can also create a new terrain generator right-clicking on the Project Panel and selecting Create -> VoxelPlay -> Terrain Generators -> Default Terrain Generator:

This option will create an terrain generator based on the Default Terrain Generator algorithm provided by Voxel Play (see “Coding your own terrain generator” for instructions on how to create your own methods).

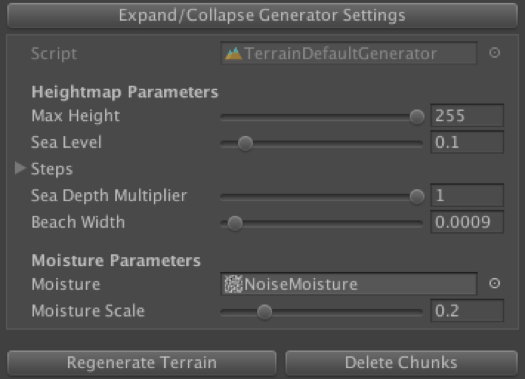

Select the Terrain Generator to see its properties or click “Expand/Collapse Generator Settings in the Voxel Play Environment inspector to see its properties:

Terrain Graph Editor

The Terrain Graph Editor provides a visual, node-based interface to design terrain generation algorithms. You can create, connect and preview terrain operations on a visual graph canvas.

To open the Graph Editor, select the Terrain Generator asset and click Open in Graph Editor in the Inspector:

The Inspector also exposes the main terrain parameters:

• Max Height: maximum terrain altitude in voxels (default 255).
• Min Height: minimum terrain altitude. Negative values allow underground depth.
• Add Water / Water Level: enables water generation and sets the water level in voxels.
• Sea Depth Multiplier: scales depth below sea level for deeper or shallower oceans.
• Beach Width: controls the shore voxel area around the water line.
• Water Voxel / Shore Voxel / Bedrock Voxel: voxel definitions used for water, beaches and the bottom layer.
• Add Ore: enables ore generation underground based on biome settings.
• Enable Half Step Surface: uses microvoxels for smoother terrain surfaces.

Graph Editor Interface

The Graph Editor window is divided into the following areas:

• Toolbar: buttons for creating new graphs (New), saving (Save or Ctrl+S), auto-arranging nodes (Auto Layout), fitting the view (Fit View), toggling the minimap and preview panel, and reloading.
• Canvas: the main area where nodes are placed and connected. Scroll to zoom, drag to pan.
• MiniMap: a small overview in the top-left corner showing the full graph layout.
• Preview panel: shown in the bottom-right corner, it renders a real-time heightmap or biome preview of the terrain produced by the current graph. It displays altitude range, coverage area and water level. Click on the preview to inspect values at a specific world position.

Working with Nodes

Right-click on the canvas to open the Create Node menu. Nodes are organized into four categories, each with a distinct color:

Each node shows its input ports on the left and output port on the right. To connect nodes, drag from an output port to an input port. Values flow through connections and are evaluated in topological order.

The graph has two special output nodes:

• Altitude Output: the final terrain height value (normalized 0 to 1).
• Moisture Output: an optional secondary value used together with altitude for biome selection.

Click on a node title to collapse or expand its parameters. Many numeric fields support switching between Normalized (0..1) and Meters units using the dropdown next to the field.

Available Node Operations

The following operations are available as nodes in the Graph Editor. Each node produces a float output value that can be connected to other nodes:

Samplers (green nodes - generate initial values):

• Sample Height Map Texture: reads a value from a 2D noise texture. Configure frequency (sampling scale) and output range (min/max) to remap values.
• Sample Ridge Noise From Texture: similar to Sample Height Map Texture but applies a ridge formula: 2 * (0.5 - abs(0.5 - value)). Produces acute reliefs, useful for rivers (when inverted) or pointy mountains.
• Sample Heightmap Fractal: generates Perlin fractal noise with configurable octaves, persistence and lacunarity for detailed, natural-looking terrain.
• Sample Heightmap from Unity Terrain: reads height data from an existing Unity Terrain asset in the scene.
• Constant: outputs a fixed constant value.
• Random: produces a deterministic pseudo-random value (0-1) based on world X/Z position.

Math (orange nodes - transform a single value):

• Shift: adds a constant to the input value. Supports both normalized and meter units.
• Invert: outputs 1 - input.
• Add and Multiply: computes (input + Add) * Multiply.
• Multiply And Add: computes (input * Multiply) + Add.
• Exponential: raises the input to a power. Useful to accentuate valleys and mountain shapes.
• Flatten or Raise: if the input is above a threshold, multiplies it by a factor. Values below the threshold pass through unchanged.
• Clamp: constrains the value to a given min/max range.
• Island: reduces the height based on distance from the world origin, creating island-like falloff.

Blending (purple nodes - combine two values):

• Blend Additive: combines two inputs with custom weights: A * WeightA + B * WeightB.
• Blend Multiply: multiplies two input values together.

Filters (yellow nodes - conditional operations):

• Threshold: if the input is greater than or equal to a threshold, outputs that value plus an optional shift. Otherwise outputs a fallback constant.
• Fill: replaces any value within a given range with a constant. Values outside the range pass through.
• Test: outputs 1 if the input falls inside a given range, otherwise outputs 0.
• Copy: explicitly references and passes through a previous node's output.
• Beach Mask: suppresses beach/shore voxels in areas where the mask input exceeds a threshold.

Feel free to experiment with nodes and see the effect on the world. We recommend enabling the Render In Editor toggle so you can test the changes inside the Scene View.

About Biomes

The terrain generator is responsible for producing an altitude and moisture (humidity) value for any world position. Using this altitude and moisture, Voxel Play looks up the matching biome and picks the appropriate voxel definition for the surface and the underground voxels.

Check the biome definitions page for more details about how to define biomes based on altitude and moisture ranges.

Complete world & terrain generation tutorial

Coding Your Own Terrain Generator

The default terrain generator covers most use cases with its graph-based pipeline, but sometimes you need full control - procedural planets, custom noise algorithms, importing external heightmap data, or game-specific terrain logic. In those cases, you can write your own terrain generator by subclassing VoxelPlayTerrainGenerator.

How generation works: When a chunk needs terrain, Voxel Play creates an empty chunk (16x16x16 voxels) and calls your PaintChunk method. Your job is to fill the chunk's voxels array with the appropriate voxel types. Return true if you placed any voxels, or false if the chunk is empty (e.g. it's entirely above the terrain surface).

API Reference

Chunk Layout

Each chunk is a flat array of 4096 voxels (16x16x16). Use these constants to calculate indices:

• ONE_Y_ROW = 256 (16 x 16) - offset to move one row up in Y
• ONE_Z_ROW = 16 - offset to move one row in Z
• Index formula: index = y * ONE_Y_ROW + z * ONE_Z_ROW + x

These constants are available as protected fields in VoxelPlayTerrainGenerator.

Voxel Helpers

Use these methods on chunk.voxels[index] to set voxel data efficiently:

Example: Simple Flat Terrain Generator

using UnityEngine;
using VoxelPlay;

[CreateAssetMenu(menuName = "Voxel Play/Terrain Generators/Flat Terrain",
                 fileName = "FlatTerrainGenerator", order = 200)]
public class FlatTerrainGenerator : VoxelPlayTerrainGenerator {

    [Header("Flat terrain settings")]
    public int altitude = 40;
    public VoxelDefinition terrainVoxel;
    public Color32 voxelColor = new Color32(255, 255, 255, 255);

    public override bool PaintChunk(VoxelChunk chunk) {
        // Bottom Y position of this chunk in world space
        int chunkBottomY = FastMath.FloorToInt(
            chunk.position.y - VoxelPlayEnvironment.CHUNK_HALF_SIZE);

        // If the entire chunk is above our terrain, skip it
        if (chunkBottomY >= altitude) {
            return false;
        }

        // How many rows (in local Y) are solid inside this chunk
        int maxY = altitude - chunkBottomY;
        int lastVoxel = maxY * ONE_Y_ROW;
        if (lastVoxel > chunk.voxels.Length)
            lastVoxel = chunk.voxels.Length;

        // Fill solid voxels
        for (int k = 0; k < lastVoxel; k++) {
            chunk.voxels[k].Set(terrainVoxel, voxelColor);
        }

        // Mark surface chunks so VP computes lighting correctly
        int chunkTopY = (int)chunk.position.y
            + VoxelPlayEnvironment.CHUNK_HALF_SIZE;
        chunk.isAboveSurface = chunkTopY >= altitude;

        return true;
    }
}
