Terrain Graph Editor

intermediate concepts

Voxel Play 3 · World Architecture

Overview

The Terrain Graph Editor is a visual, node-based tool for designing terrain generation algorithms in Voxel Play. Instead of writing code, you connect nodes on a canvas to build a signal-processing pipeline that produces altitude and moisture values for any world position.

This page is a comprehensive reference for the Graph Editor window, all toolbar options, and every available node type with its parameters and formulas.

Opening the Editor

There are two ways to open the Terrain Graph Editor:

  • Select a Terrain Generator asset (Default Terrain Generator / Multi-Step Terrain Generator) in the Project panel and click Open in Graph Editor in the Inspector.
  • From the menu bar: Window > Voxel Play > Terrain Graph Editor.

Inspector with Open in Graph Editor button

Window Layout

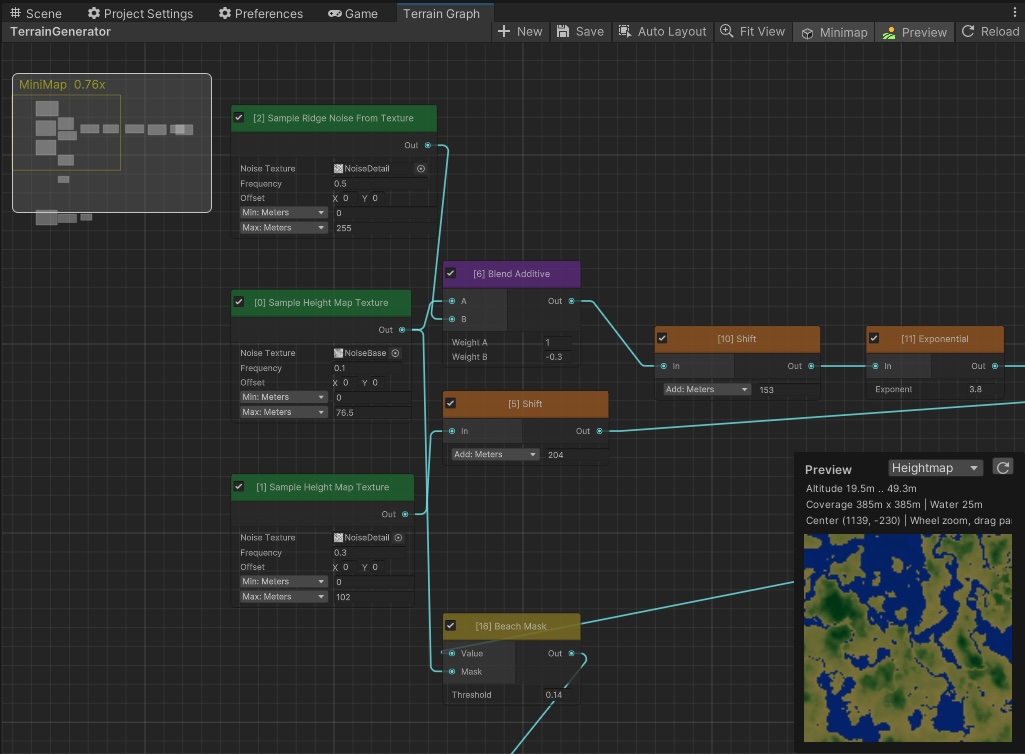

Terrain Graph Editor window overview

The editor window is divided into the following areas:

Toolbar

The top toolbar contains buttons and toggles:

ControlTypeDescription
NewButtonCreates a new terrain generator asset and opens it in the editor.
ReloadButtonReloads the graph from the saved generator asset, discarding any unsaved changes.
SaveButtonSaves the current graph state to the generator asset. Also available via Ctrl+S / Cmd+S.
Auto LayoutButtonAutomatically arranges all nodes in a clean layout based on their connections.
Fit ViewButtonZooms and pans the canvas so all nodes are visible.
MinimapToggleShows or hides the minimap overlay (top-left corner).
PreviewToggleShows or hides the terrain preview panel.
DiagnosticsToggleShows or hides the diagnostics panel that reports errors, warnings and info messages about the graph.
SyncToggleWhen enabled, the editor monitors the graph output and automatically refreshes the scene world whenever the terrain changes. Enabling Sync also performs an immediate world update.
Update WorldButtonManually reloads the currently loaded world using the current graph state.

Canvas

The main area where nodes are placed and connected. Navigation:

  • Scroll wheel: zoom in/out.
  • Middle-click drag or Alt + drag: pan the view.
  • Right-click on empty space: opens the Create Node search menu.
  • Click a node to select it. Shift+click or drag a selection box for multiple nodes.
  • Delete / Backspace: delete selected nodes and connections.
  • Ctrl+C / Ctrl+V: copy and paste selected nodes.
  • Ctrl+Z / Ctrl+Y: undo and redo.

Minimap

A small overview in the top-left corner showing the full graph layout. Click or drag inside the minimap to navigate quickly to any part of the graph.

Preview Panel

The preview panel (bottom-right by default) renders a real-time visualization of the terrain produced by the current graph. It can be dragged to reposition and resized by dragging its edges.

The preview has four display modes:

ModeDescription
HillshadeDefault mode. Renders a shaded relief map showing terrain elevation with simulated lighting, water areas in blue.
HeightmapDisplays raw altitude values as a grayscale gradient. Lower areas are darker, higher areas are brighter.
MoistureVisualizes the moisture output. Requires a Moisture Output connection in the graph.
BiomesColors each pixel based on the biome selected by the altitude/moisture combination. Requires a World Definition with biomes configured.

The status bar at the bottom of the preview shows altitude range, coverage area, and water level. Click on the preview to inspect altitude and moisture values at a specific world position.

Tip: Enable Follow Anchor in the preview context menu to keep the preview centered on the Scene View camera position, so you can see exactly what the terrain looks like where you are looking.

Diagnostics Panel

When enabled, the diagnostics panel appears at the bottom of the window. It shows real-time validation messages about your graph:

  • Errors (red): issues that prevent the graph from producing valid output (e.g., disconnected output nodes, cycles).
  • Warnings (yellow): potential problems that may cause unexpected results (e.g., unconnected input ports).
  • Info (white): general information about the graph state.

Click on a diagnostic message to highlight the affected node in the canvas.

Working with Nodes

Creating Nodes

Right-click on the canvas to open the Create Node search menu. Nodes are organized into five categories, each with a distinct color:

CategoryColorDescription
SamplersGreenGenerate initial terrain values from noise textures, fractal noise, Unity Terrain data, constants or random values. These nodes have no required inputs - they produce values from external sources or fixed data.
MathOrangeTransform values using arithmetic, range manipulation, and terrain-shaping functions. Includes single-input operations (shift, clamp, remap) and dual-input operations (min, max, subtract, divide).
BlendingPurpleCombine two input values using additive or multiplicative blending with custom weights.
FiltersYellowConditional operations: threshold comparisons, range tests, value replacement, and special-purpose masks.
UtilitiesGrayHelper nodes like Reroute for organizing complex connection layouts.

Connecting Nodes

Each node shows input ports on the left and an output port on the right. To connect nodes, drag from an output port to an input port (or vice versa). Values flow through connections and are evaluated in topological order.

Port names vary by node type:

  • Out: the single output port present on every step node.
  • In: a single input for nodes that transform one value (e.g., Shift, Invert, Clamp).
  • A / B: two inputs for dual-input operations (e.g., Blend Additive, Min, Max, Subtract).
  • Value / Ref or Value / Mask: nodes like Fill and Beach Mask that carry a main value through while reading a separate reference input.

Output Nodes

The graph has two special output nodes that cannot be deleted:

  • Altitude Output: the final terrain height value (normalized 0 to 1). This value is multiplied by Max Height to determine the world altitude in voxels.
  • Moisture Output: an optional secondary value used together with altitude for biome selection. If no connection is made to Moisture Output, the terrain generator falls back to the legacy moisture texture configured in the Inspector.

Node Controls

  • Enable/Disable toggle: the checkbox in the node title bar. Disabled nodes are dimmed and skipped during evaluation.
  • Custom description: each node has a description field. When set, it replaces the default operation name in the title bar, helping you label nodes by purpose (e.g., "Base Mountains", "River Mask").
  • Collapse/Expand: click the node title to toggle parameter visibility.

Height Units

Many numeric parameters support three display modes via a dropdown next to the field:

UnitDescription
NormalizedRaw graph value, typically in the 0..1 range. This is the internal representation.
PercentageThe normalized value multiplied by 100. Entering 50% is equivalent to 0.5 normalized.
MetersConverts using the terrain generator's Max Height. For example, with Max Height = 255, entering 127.5 meters equals 0.5 normalized.

The unit choice is purely a display convenience - the internal stored value is always normalized. Changing the unit dropdown converts the displayed number without altering the actual parameter.

Reroute Nodes

Reroute nodes are small pass-through dots available in the Utilities category. They have one input and one output and simply forward the value. Use them to organize connection lines in complex graphs - route wires around obstacles or create cleaner visual paths. Reroute nodes can branch: a single input can feed multiple outputs.

Node Reference

This section documents every available node with its parameters, input/output ports, and evaluation formula.

Samplers (Green)

Sampler nodes generate initial terrain values. They have no required input connections.

Sample Height Map Texture

Reads a value from a repeating 2D noise texture. The red channel is used as the height value. Voxel Play includes several noise textures in Resources/Worlds/Earth/Noise/, but you can provide your own.

ParameterDescription
Noise TextureThe 2D texture to sample. The red channel provides the height value.
FrequencyMultiplier applied to world X/Z coordinates before sampling. Higher values make the pattern repeat more often (default: 0.1).
OffsetX/Z offset added to sampling coordinates before reading the texture.
MinLower bound of the remapped output range.
MaxUpper bound of the remapped output range (default: 0.5).

Formula: output = sample(texture, x * frequency + offsetX, z * frequency + offsetY) * (max - min) + min

Sample Ridge Noise From Texture

Similar to Sample Height Map Texture but applies a ridge formula to the sampled value: 2 * (0.5 - abs(0.5 - value)). This produces sharper, more acute relief patterns - useful for generating rivers (when inverted) or pointy mountain ridges.

ParameterDescription
Noise TextureThe 2D texture to sample.
FrequencySampling frequency multiplier.
OffsetX/Z offset added to sampling coordinates.
MinLower bound of the remapped output range.
MaxUpper bound of the remapped output range.

Formula: ridged = 2 * (0.5 - abs(0.5 - sample)), then output = ridged * (max - min) + min

Sample Height Map Fractal

Generates procedural Perlin fractal noise without requiring a texture. This is the most flexible sampler for creating natural-looking terrain, as it combines multiple octaves of noise at different frequencies.

ParameterDescription
FrequencyBase frequency of the fractal noise. Higher values produce more frequent variation.
OctavesNumber of fractal layers combined together (1-8). More octaves add finer detail.
PersistenceAmplitude multiplier from one octave to the next. Lower values reduce the contribution of higher octaves.
LacunarityFrequency multiplier from one octave to the next. Controls how quickly detail increases.
MinLower bound of the remapped output range.
MaxUpper bound of the remapped output range.

Formula: output = fractalNoise(x, z, frequency, octaves, persistence, lacunarity) * (max - min) + min

Sample Height Map Unity Terrain

Reads height data from an existing Unity Terrain asset's heightmap. Useful for converting a hand-painted Unity terrain into a Voxel Play world while combining it with procedural operations.

Note: If you want to recreate an existing Unity terrain including vegetation and trees with voxel style, use the dedicated Unity Terrain Generator instead. This node is for sampling heightmap data within a custom graph pipeline.
ParameterDescription
Terrain DataThe Unity TerrainData asset to sample.
FrequencyMultiplier applied to world X/Z before sampling. Higher values repeat the terrain data.
OffsetX/Z offset added before reading the heightmap.
MinLower bound of the remapped output range.
MaxUpper bound of the remapped output range.

Constant

Outputs a fixed constant value. Useful as a baseline height, a weight input, or any fixed parameter that other nodes can reference.

ParameterDescription
ValueThe constant value to output. Supports height units (Normalized/Percentage/Meters).

Random

Outputs a deterministic pseudo-random value in the 0-1 range based on the world X/Z position. The same position always produces the same value, ensuring consistent terrain generation.

No parameters.

Math (Orange)

Math nodes transform incoming values. Single-input nodes have one In port. Dual-input nodes have A and B ports.

Shift

Adds a constant amount to the incoming value. The simplest way to raise or lower the entire terrain.

Port/ParameterDescription
In (input port)Value to shift.
AddAmount added to the input. Supports height units.

Formula: output = input + Add

Invert

Flips the incoming value. Mountains become valleys and valleys become mountains.

PortDescription
In (input port)Value to invert.

Formula: output = 1 - input

No parameters.

Add And Multiply

Adds a number to the input then multiplies the result. Useful for shifting and scaling a signal in one step.

Port/ParameterDescription
In (input port)Value to transform.
AddAmount added before multiplication. Supports height units.
Then MultiplyFactor applied after adding.

Formula: output = (input + Add) * ThenMultiply

Multiply And Add

Multiplies the input then adds a number. The reverse order of Add And Multiply.

Port/ParameterDescription
In (input port)Value to transform.
MultiplyFactor applied to the input.
Then AddAmount added after multiplication. Supports height units.

Formula: output = (input * Multiply) + ThenAdd

Exponential

Raises the input to a power. Useful for accentuating valleys (exponent < 1) or sharpening mountain peaks (exponent > 1). Negative input values are clamped to 0 before exponentiation.

Port/ParameterDescription
In (input port)Value to exponentiate.
ExponentPower to raise the input to.

Formula: output = max(input, 0) ^ Exponent

Remap

Linearly remaps the incoming value from a source range into a target range. Values outside the source range will extrapolate beyond the target range - chain a Clamp node after Remap if you need to limit the result.

Port/ParameterDescription
In (input port)Value to remap.
From MinLower bound of the input range. Supports height units.
From MaxUpper bound of the input range. Supports height units.
To MinLower bound of the output range. Supports height units.
To MaxUpper bound of the output range. Supports height units.

Formula: t = (input - FromMin) / (FromMax - FromMin), then output = lerp(ToMin, ToMax, t)

Abs

Outputs the absolute value of the input. Useful for converting signed noise into unsigned values, or creating symmetrical terrain patterns.

PortDescription
In (input port)Value to take the absolute of.

Formula: output = abs(input)

No parameters.

Terraces

Quantizes the incoming value into discrete terrace bands, creating a stepped, plateau-like terrain effect. The smoothness parameter controls how soft the transitions are between bands, and the strength parameter blends between the terraced result and the original input.

Port/ParameterDescription
In (input port)Value to terrace.
StepsNumber of terrace bands generated across the value range (2-64). Default: 6.
SmoothnessHow soft the transitions are between terraces (0-1). 0 creates hard steps, 1 creates very smooth blending. Default: 0.2.
StrengthBlend between the original input and the terraced result (0-1). 0 means no terracing, 1 means full terrace effect. Default: 1.

Formula: terraced = applyTerraces(input, steps, smoothness), then output = lerp(input, terraced, strength)

Flatten Or Raise

Modifies terrain slope above a threshold. If the input is above Min Elevation, the excess above that threshold is multiplied by a factor. Values below the threshold pass through unchanged.

Port/ParameterDescription
In (input port)Value to modify.
Min ElevationThreshold above which the terrain slope is modified. Supports height units.
MultiplierSlope factor applied above Min Elevation. Use 0 to flatten to the threshold, 1 to keep unchanged, >1 to exaggerate.

Formula: if input >= threshold: output = (input - threshold) * multiplier + threshold, else output = input

Clamp

Constrains the input value to a given range. Values below Min are raised to Min; values above Max are lowered to Max.

Port/ParameterDescription
In (input port)Value to clamp.
MinLower clamp bound. Supports height units.
MaxUpper clamp bound. Supports height units.

Formula: output = clamp(input, min, max)

Min

Outputs the smaller of two input values. Useful for combining terrain layers where you want the lower elevation to win.

PortDescription
A (input port)First value.
B (input port)Second value.

Formula: output = min(A, B)

No parameters.

Max

Outputs the larger of two input values. Useful for combining terrain layers where you want the higher elevation to win.

PortDescription
A (input port)First value.
B (input port)Second value.

Formula: output = max(A, B)

No parameters.

Subtract

Subtracts the second input from the first. Useful for carving features out of a base terrain.

PortDescription
A (input port)Value to subtract from.
B (input port)Value to subtract.

Formula: output = A - B

No parameters.

Divide

Divides the first input by the second. If the divisor is zero or nearly zero, the output becomes 0 to avoid invalid values.

PortDescription
A (input port)Dividend.
B (input port)Divisor.

Formula: output = |B| > 0.000001 ? A / B : 0

No parameters.

Island

Creates an island falloff by reducing terrain height based on distance from the world origin (0, 0). Beyond the configured radius, height decreases progressively, creating natural island boundaries.

Port/ParameterDescription
In (input port)Terrain height value to modify.
RadiusIsland radius in world units. No height reduction occurs inside this radius.
Slope MultiplierHow strongly terrain is lowered beyond Radius. Higher values create steeper coastal drops.

Formula: d = sqrt(x*x + z*z) - Radius. If d > 0: output = input - d * SlopeMultiplier / MaxHeight, else output = input

Blending (Purple)

Blending nodes combine two input values into one.

Blend Additive

Combines two inputs with custom weights. The most common way to mix different terrain layers (e.g., base terrain + mountain overlay).

Port/ParameterDescription
A (input port)First input value.
B (input port)Second input value.
Weight AMultiplier applied to input A before summing (default: 1).
Weight BMultiplier applied to input B before summing (default: 1).

Formula: output = A * WeightA + B * WeightB

Blend Multiply

Multiplies two input values together. Useful for masking one terrain signal with another - for example, multiplying a height map by a mask to create isolated features.

PortDescription
A (input port)First input value.
B (input port)Second input value.

Formula: output = A * B

No parameters.

Filters (Yellow)

Filter nodes perform conditional operations - they test values against conditions and produce different outputs based on the result.

Threshold

Compares a referenced input against a threshold value. If the input passes, it is output with an optional shift applied. If it fails, a fallback constant is output instead.

Port/ParameterDescription
In (input port)Referenced value to compare against the threshold.
ThresholdComparison value. Supports height units.
If Greater, AddAmount added to the input when it is greater than or equal to Threshold. Supports height units.
If Not, OutputFallback value used when the input is below Threshold. Supports height units.

Formula: if input >= Threshold: output = input + IfGreaterAdd, else output = IfNotOutput

Select

Filters values from a referenced input by a valid range. Values inside the range pass through; values outside are replaced by a constant. Useful for isolating specific elevation bands.

Port/ParameterDescription
In (input port)Referenced value to test against the range.
Range MinLower bound of the accepted range. Supports height units.
Range MaxUpper bound of the accepted range. Supports height units.
Outside ValueValue output when the referenced input falls outside the range. Supports height units.

Formula: if input < RangeMin or input > RangeMax: output = OutsideValue, else output = input

Fill

Replaces values within a given range with a constant. Values outside the range pass through unchanged from the main value flow. This node has two inputs: Value carries the terrain flow, and Ref is tested against the range.

Port/ParameterDescription
Value (input port)Main incoming value carried through this node. Passes through when Ref is outside the range.
Ref (input port)Referenced step checked against the range.
Range MinLower bound of the fill range. Supports height units.
Range MaxUpper bound of the fill range. Supports height units.
Fill ValueValue written when Ref falls inside the range. Supports height units.

Formula: if Ref >= RangeMin and Ref <= RangeMax: output = FillValue, else output = Value

Test

Checks if a referenced value falls inside a given range. Outputs 1 if inside, 0 if outside. Useful as a boolean mask for further operations.

Port/ParameterDescription
In (input port)Referenced value to test.
Range MinLower bound of the test range. Supports height units.
Range MaxUpper bound of the test range. Supports height units.

Formula: if input >= RangeMin and input <= RangeMax: output = 1, else output = 0

Copy

Copies the value from the connected input. Useful for explicitly branching a signal path or for reusing an earlier result at a different point in the graph.

PortDescription
In (input port)Step to copy the value from.

Formula: output = input

No parameters.

Beach Mask

A special-purpose node that suppresses beach/shore voxel generation in areas where a mask input exceeds a threshold. The main terrain value (Value port) passes through unchanged - this node only affects whether beaches are allowed at each position.

Port/ParameterDescription
Value (input port)Main terrain altitude. Passes through unchanged.
Mask (input port)Mask value used to decide whether beaches are allowed.
ThresholdIf Mask is above this normalized value, beach generation is disabled at that position.

Formula: output = Value (pass-through). Side effect: if Mask > Threshold, beaches are suppressed at this world position.

Utilities

Reroute

A small pass-through node displayed as a dot. It forwards the input value to its output without modification. Use reroute nodes to tidy up complex graphs by redirecting connection lines. A single reroute can feed multiple downstream connections.

No parameters. One input, one output.

Was this page helpful?
