POI Settings

beginner concepts

A Point of Interest (POI) is a CompassProPOI MonoBehavior attached to any GameObject. POIs self-register with the compass system on Start().

Creating POIs

In the Editor

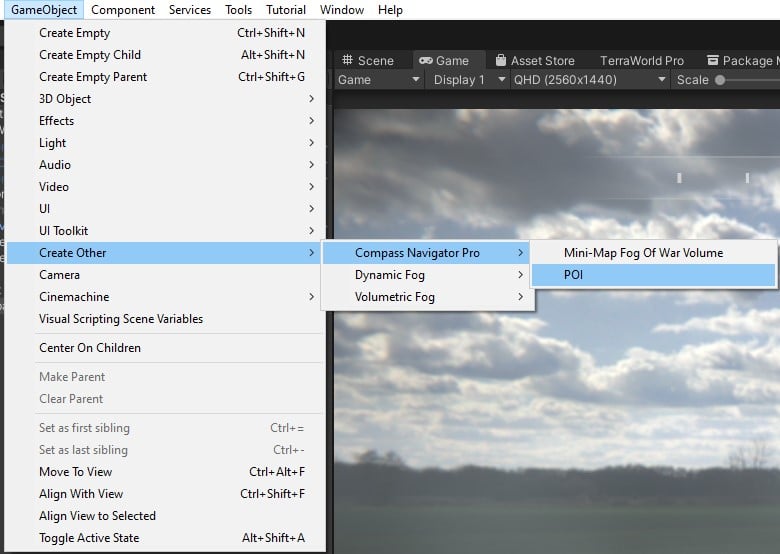

Use GameObject > Create Other > Compass POI to create a new POI GameObject, or add the CompassProPOI component to any existing GameObject.

Via Script

using CompassNavigatorPro;

GameObject obj = new GameObject("My POI");
obj.transform.position = targetPosition;

CompassProPOI poi = obj.AddComponent<CompassProPOI>();
poi.title = "Quest Marker";
poi.iconNonVisited = mySprite;

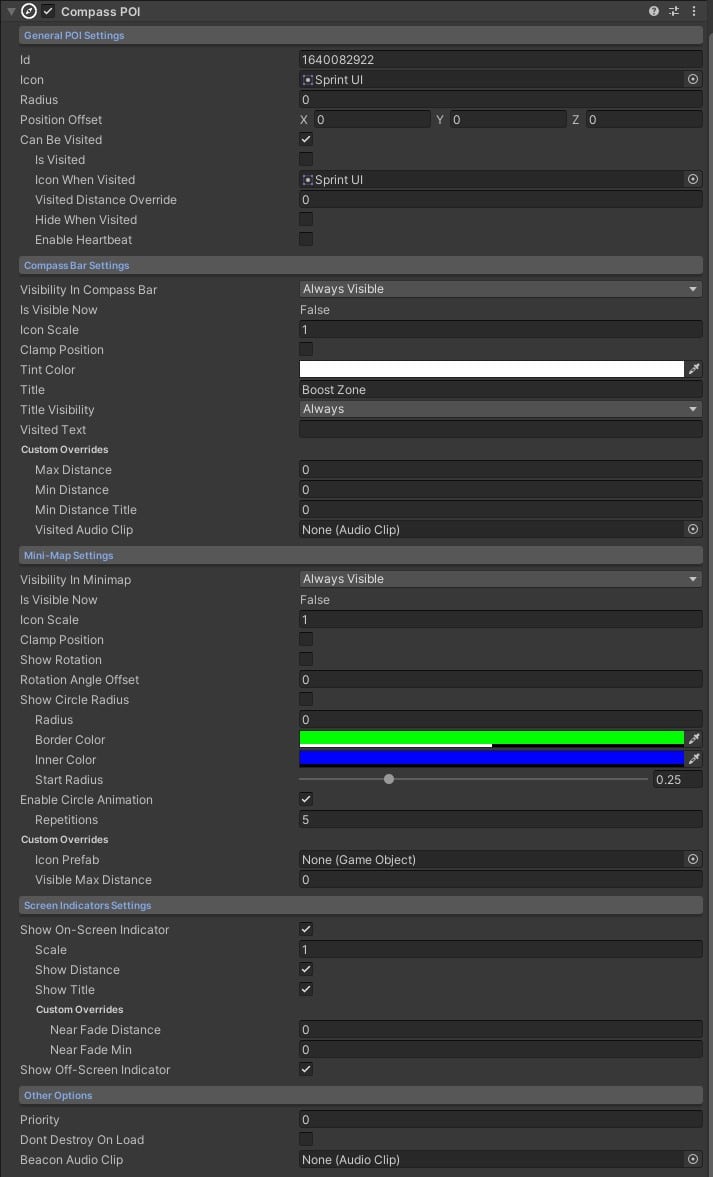

POI Inspector Settings

General

Parameter	Description
ID	Unique identifier, required when Don't Destroy On Load is enabled.
Icon	Default icon sprite for this POI (used if no visited/discovered icons are set).
Radius	Area-of-interest radius around the POI.
Position Offset	Optional offset added to the POI world position.
Can Be Visited	Allow the POI to be marked as visited when the player reaches it.

Compass Bar

Parameter	Description
Visibility on Compass Bar	When the icon appears: always, when in range, or hidden.
Icon Scale	Icon size on the compass bar.
Clamp Position	Pin the icon to the bar edge when the POI is behind the player.
Tint Color	Color tint applied to the icon.
Title	Text shown on the compass bar when the icon is visible.
Title Visibility	When the title appears.
Visited Text	Discovery text shown when the POI is visited.

Mini-Map

Parameter	Description
Visibility in Mini-Map	When the icon appears on the mini-map.
Icon Scale	Icon size on the mini-map.
Clamp Position	Keep the icon visible even when the POI is far away.
Show Rotation	Rotate the icon based on the POI orientation.
Rotation Angle Offset	Custom rotation offset for the icon.
Show Circle Radius	Display a circular area with custom color around the POI.
Enable Circle Animation	Pulse animation for the circle.

Screen Indicators

Parameter	Description
Show On-Screen Indicator	Enable the in-world indicator for this POI (with distance and title options).
Show Off-Screen Indicator	Enable edge-of-screen arrows for this POI.

Other

Parameter	Description
Priority	Higher-priority POIs render above others.
Don't Destroy On Load	Preserve POI state across scene changes.
Beacon Audio Clip	Sound played when the beacon effect is triggered for this POI.
