Fog of War

intermediate tasks

Fog of War hides unexplored areas on the mini-map until the player discovers them. It is a texture-based overlay managed by the compass system.

Enabling Fog of War

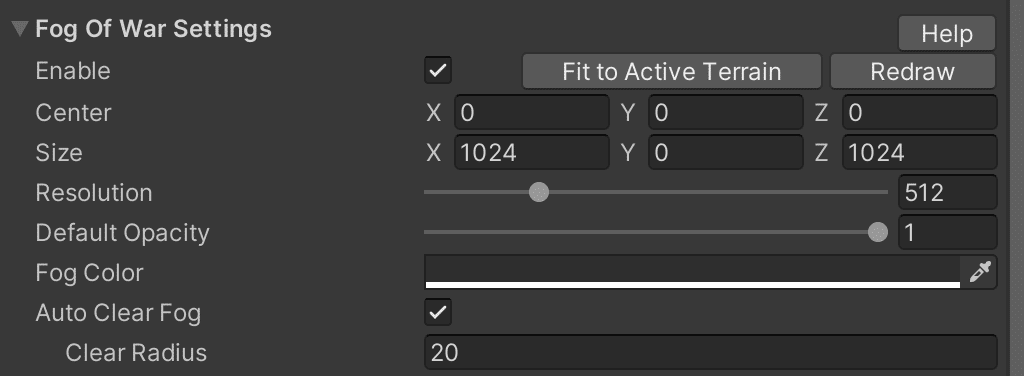

In the CompassNavigatorPro inspector, scroll to the Mini-Map section and enable Fog of War.

Fog of War Parameters

Parameter	Description
Center & Size	World-space bounds where fog of war is active.
Resolution	Texture resolution for the fog effect.
Fog Color	Tint color for the fog overlay.
Auto-Clear Fog	Automatically reveal the area around the followed object.

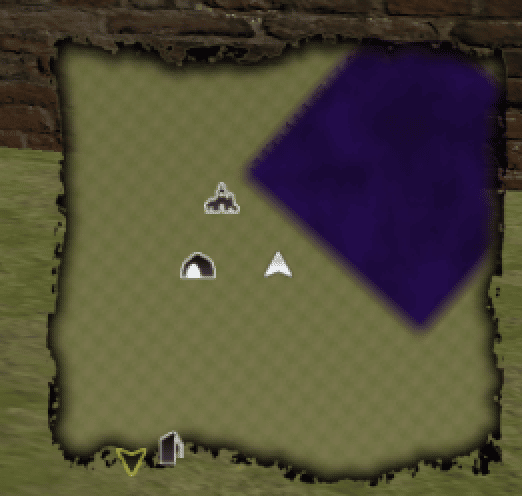

Fog Volumes

Add custom fog areas via GameObject > Create Other > Compass Fog Volume. Each volume is a BoxCollider-based region with a CompassProFogVolume script.

Parameter	Description
Alpha	Fog transparency (1 = fully opaque).
Border	Width of the soft border around the fog volume.
Order	Rendering order when multiple fog volumes overlap.

Performance note: Moving or resizing fog volumes at runtime triggers a fog texture update. For frequent changes, prefer the SetFogOfWarAlpha() API method instead. See Scripting Support (C#).

Scripting Fog of War

// Reveal a circular area around a position
CompassPro.instance.SetFogOfWarAlpha(worldPos, 30f, 0f, 5f);

// Reset all fog
CompassPro.instance.ResetFogOfWar(1f);

// Save/load fog state
Color32[] fogData = CompassPro.instance.fogOfWarTextureData;
// ... save fogData, then restore:
CompassPro.instance.fogOfWarTextureData = savedFogData;
